Solution: Brickwork repairs & repointing

Bay Window Movement Solved Without Rebuild

Unstable Ornate Bay Window Fully Repaired Without Rebuilding

Like many Victorian/Edwardian bay window properties, this home in SE London was suffering from movement of the bay window masonry.  The lack of structural integrity was affecting the entire front of the property.

The severe bay window distortion required urgent structural repairs to avoid collapse. AWT solved the bay window issues and preserved the valuable period features around the door and windows. Prompt structural repairs are far less expensive and disruptive than rebuilding a collapsed bay window.

  • No rebuilding work
  • No visible fixings
  • No need to empty the rooms
  • No need to remove or replace windows
SE London Bay Window 36 768x1024 - Bay Window Movement Solved Without Rebuild

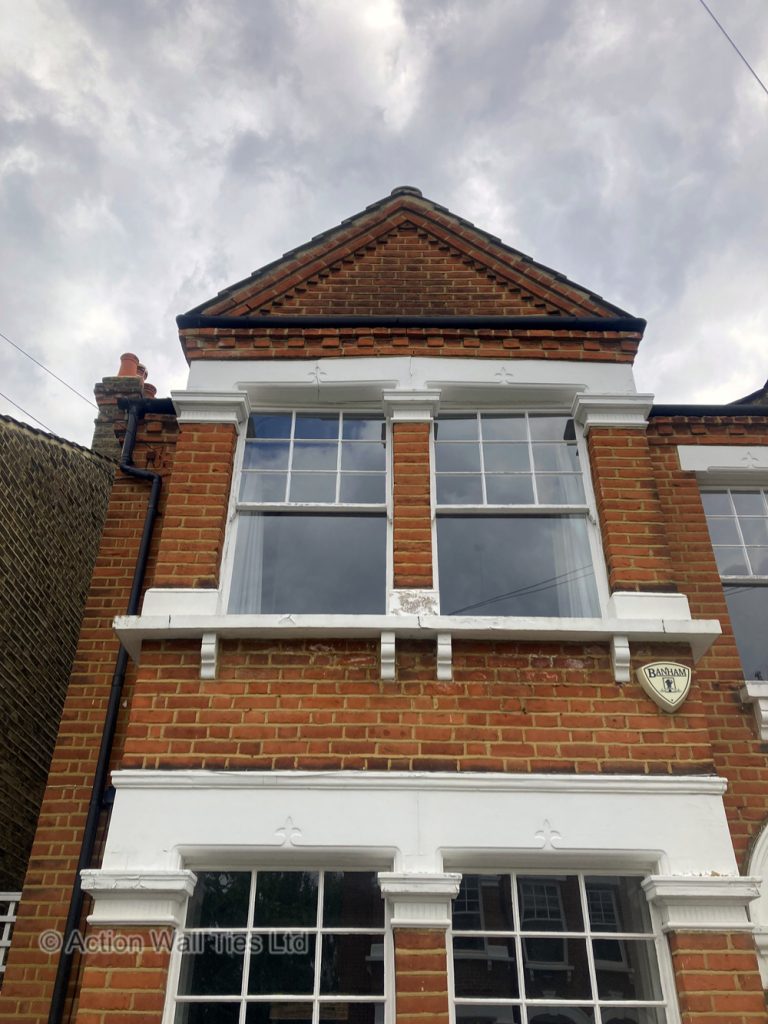

Before Bay Window Repairs
SE London Bay Repairs 01 768x1024 - Bay Window Movement Solved Without Rebuild
After Bay Window Repairs & Painting

Simply filling cracks and repointing brickwork will not halt the progressive movement of bay window masonry.

The Structural Problem

A combination of age and inadequate restraint has allowed the bay window to pull away from the main elevation. The door arch and 1st-floor window were also cracking and dropping. Such serious defects, if not addressed by suitable structural repairs, will result in the ultimate failure and collapse of the structure.

Specialist structural repairs preserve valuable period features & protect the property value.

simple horizontal - Bay Window Movement Solved Without Rebuild
SE London Bay Window 04 1 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 05 1 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 03 1 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 13 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 18 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 15 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 12 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 06 1 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 02 - Bay Window Movement Solved Without Rebuild

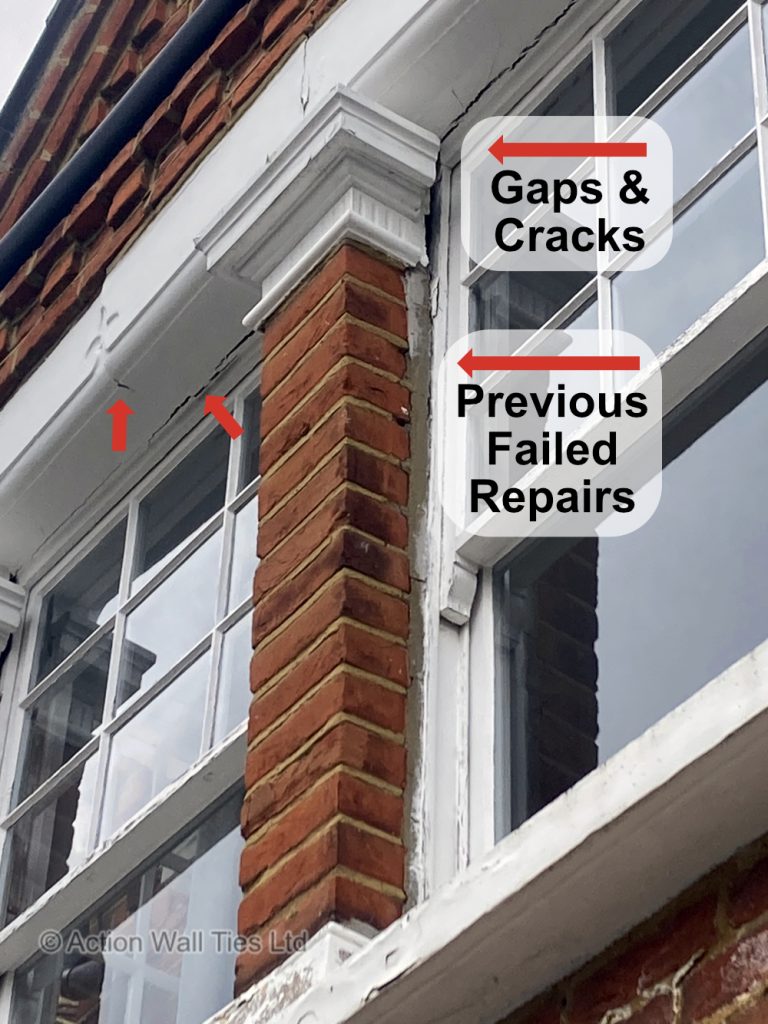

Gaps Between Window Frame & Brickwork

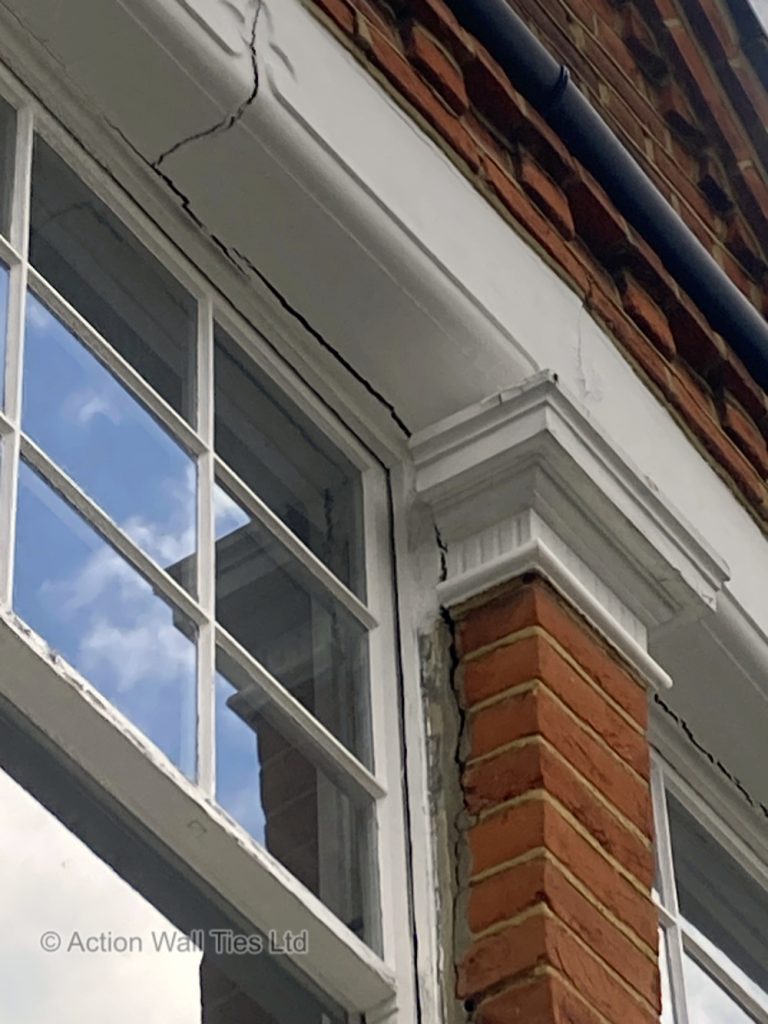

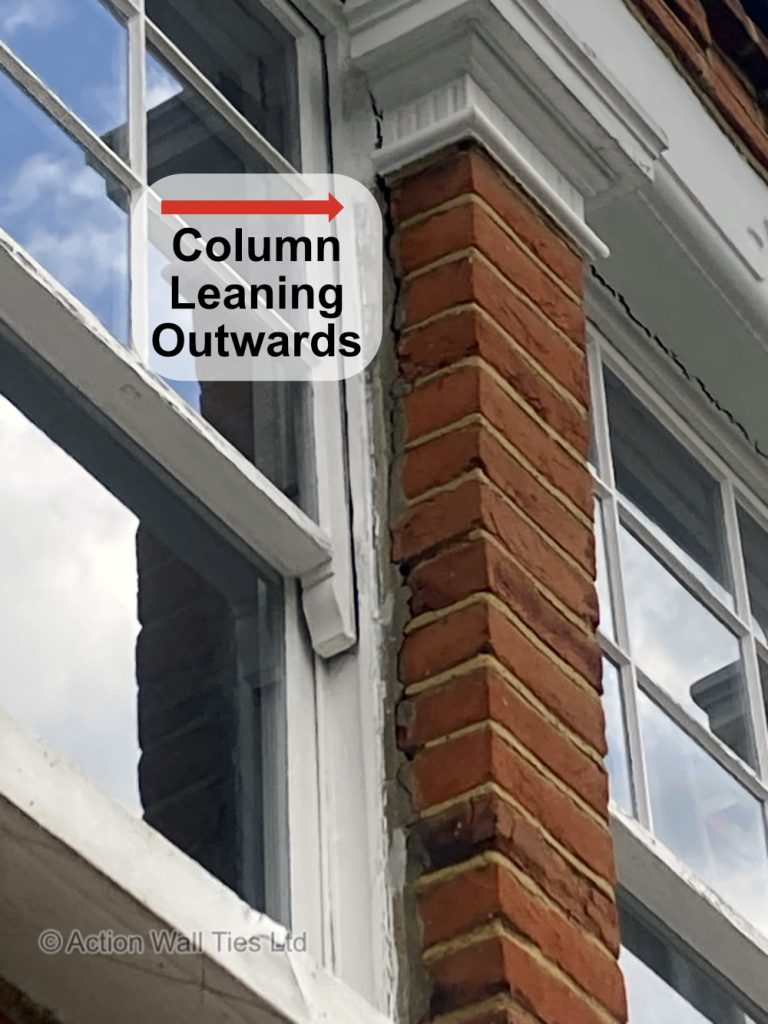

Leaning Bay Window Columns

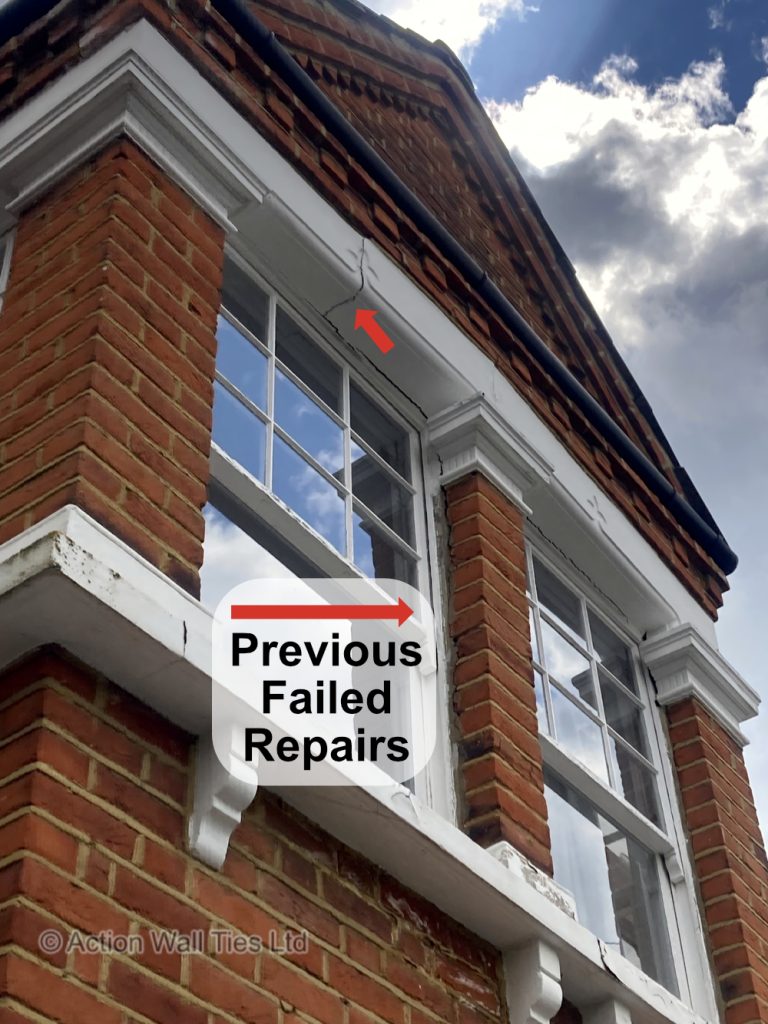

Gaps at Top of Bay Windows
Bay Window Plaster Cracks
Cracked Stonework
Cracks in Plaster & Coving
Bay Window Brickwork Cracks
Gaps Between Window & Brick

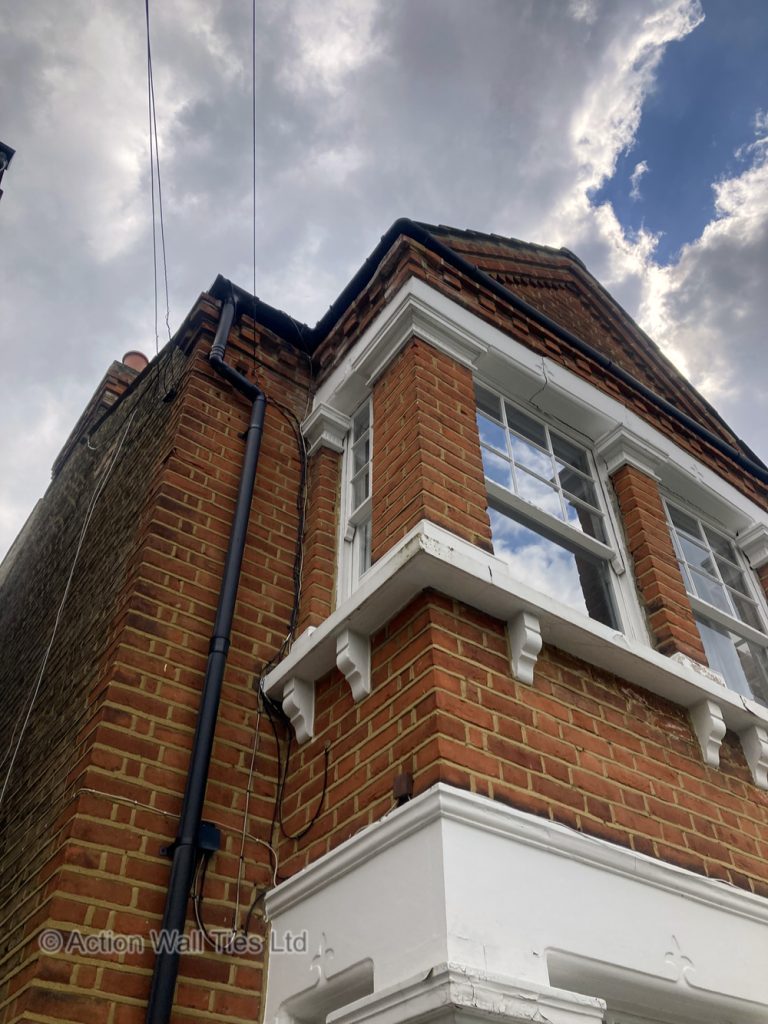

Unstable Bay Window

simple horizontal - Bay Window Movement Solved Without Rebuild
  • Significant distortion and outward movement of the ground and first-floor bay window brickwork columns
  • Gaps opening up between the window frames and the bay window columns
  • Cracking at the junctions with main elevational brickwork
  • Cracking in internal plaster
simple horizontal - Bay Window Movement Solved Without Rebuild
SE London Bay Window 10 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 08 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 16 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 20 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 14 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 17 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 11 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 09 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 19 - Bay Window Movement Solved Without Rebuild
Cracking Bay Lintel
Cracking Bay Sill
Cracks in Plaster & Coving
1st Floor Bay Cracks & Gaps
Cracking & Dropping Lintel
Cracking Doorway Stonework
Cracked Bay Lintel
Cracked Bay Sill
1st Floor Bay Cracking

simple horizontal - Bay Window Movement Solved Without Rebuild
  • Distortion and cracking of the bay window masonry lintels
  • Cracking of the bay window sills
  • Significant cracking to the front first-floor window masonry lintel
  • Entrance door masonry arch cracking

The Structural Solution

Simply filling cracks and repointing brickwork will not halt the progressive movement of bay window masonry. Specialist structural repairs are the most cost-effective solution.

simple horizontal - Bay Window Movement Solved Without Rebuild
SE London Bay Window 24 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 21 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 22 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 23 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 25 - Bay Window Movement Solved Without Rebuild
Bay Window Realignment
Strengthening Bay Window
Repairing Stone Door Arch

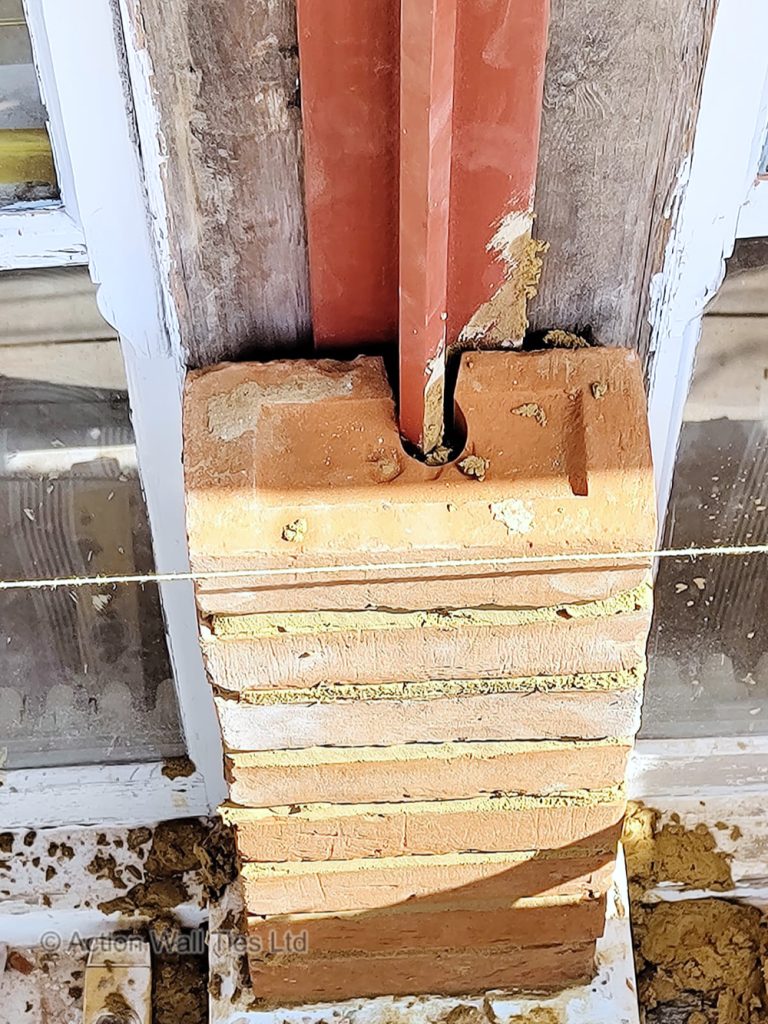

Brick Columns Realigned
Repairing Cracked Brickwork

simple horizontal - Bay Window Movement Solved Without Rebuild

The structural repairs included:

  • Temporary supports for the ground and first-floor bay window lintels
  • Realignment of the brickwork columns and masonry lintels using equipment designed by AWT
  • Restraints for the slender brickwork bay window columns
  • Stainless steel corded joint reinforcement to form a deep masonry beam
  • Stainless steel bed joint reinforcement within the masonry of the bay window
  • Grouted helical bar to reconnect the bay window brickwork and masonry
  • Grouted helical bar to reconnect the bay window to the main elevational brickwork
  • Stainless steel lateral restraints resin bonded to the masonry
  • Repairs to cracked and spalled masonry including decorative door arch
  • Repointing the heritage brickwork with the appropriate, colour-matched mortar and pointing style
simple horizontal - Bay Window Movement Solved Without Rebuild
SE London Bay Window 27 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 28 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 30 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 29 - Bay Window Movement Solved Without Rebuild
Bay Window Structural Repairs
Strengthening Bay Window Lintel
Realign/Reinforce Lintel & Masonry
Bay Window Sill Repairs

simple horizontal - Bay Window Movement Solved Without Rebuild

The formation of continuous beams within the existing masonry redistributes the upper-storey loads and restrains diagonal cracking and bulging tendencies.

All the original, ornate stonework was preserved and a coat of paint then completed the transformation.

Specialist structural repairs preserve valuable period features and protect the property value. Repairing, rather than rebuilding failing period bay windows can save homeowners thousands of pounds.

simple horizontal - Bay Window Movement Solved Without Rebuild
SE London Bay Repairs 01 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 31 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 35 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 32 - Bay Window Movement Solved Without Rebuild
SE London Bay Window 34 - Bay Window Movement Solved Without Rebuild
Repaired & Repainted

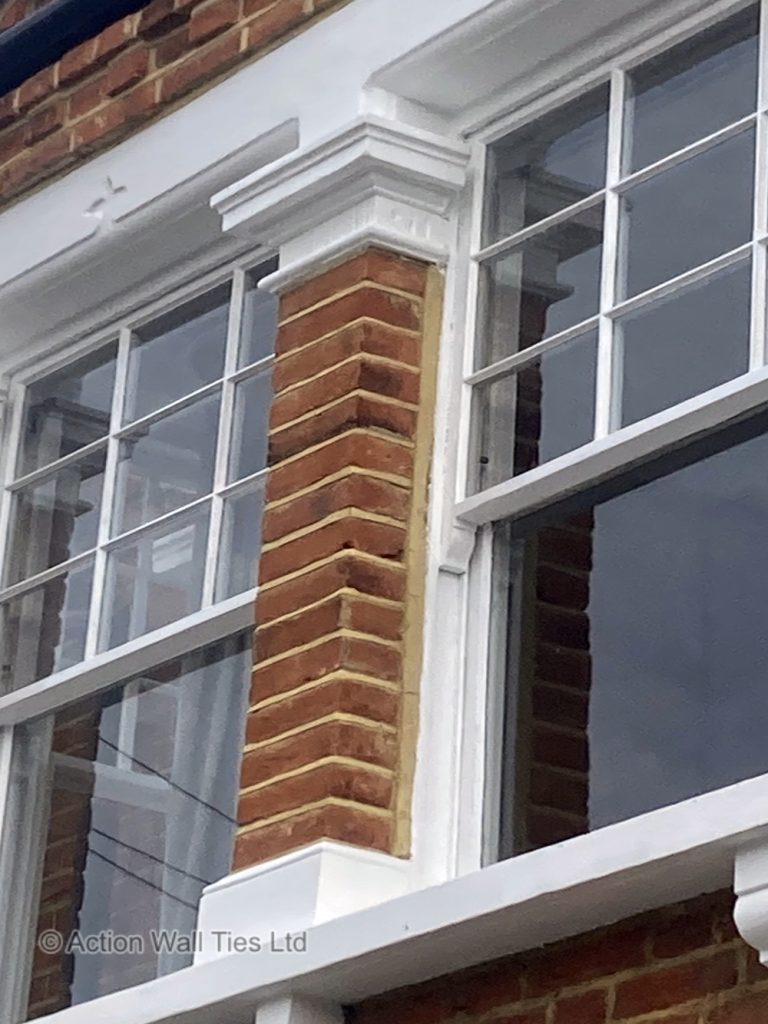

Realigned/Reinforced Bay Columns
Decorative Arch Repaired & Strengthened
Lintel Realigned & Repaired
Lintel, Columns & Sill Repaired

simple horizontal - Bay Window Movement Solved Without Rebuild

Action Wall Ties are specialist structural repair contractors with the skills and experience required to repair ornate period bay windows.  AWT work with property owners, structural engineers, architects, project managers and local authorities on large and small projects.

AWT are available in London, Essex, Surrey, Kent and Sussex. To arrange a survey or to discuss project details, please use our contact form, email us or call us on 01227 721 255.

Collapsing Ornate Bay & Balcony

Victorian Bay Window & Balcony: Structural Repairs & Restoration

victorian portico bay - Collapsing Ornate Bay & Balcony

This beautiful example of ornate Victorian architecture in Thanet was at risk of imminent collapse due to severe structural issues. The property had visible significant movement including bowing, cracking, dropping of brickwork arches and bowing columns of the front bay window and to the front elevation.

Several companies had surveyed the problems but none offered any solutions. Previous repairs to the property had tackled the symptoms of the structural defect but had failed to cure the root cause of the problem.

It took just 2 weeks of work for AWT to complete a cost-effective, long-term structural repair. Compared to rebuilding work, the disruption to the residents was minimal.

The Structural Problem

The structural issues with this period property in Thanet, Kent were clearly visible. Wide gaps had opened up between the masonry and the window frames. The structural defect had caused damage from the ground floor bay window columns up to the decorative brickwork panels below the eaves. This entire section of the property was in severe danger of collapse.

Bay Window Issues



AWT’s inspection of the front bay window found significant distorting movement to the front ground floor causing:

  •  outward movement
  • dropping and cracking of the brickwork arches and stone quoins
  • significant outward bowing of brickwork columns beyond the tipping point



First Floor Masonry Issues

Inspection of the front elevational brickwork found signs of distorting movement of the ground floor supporting bressummer beam (over the bay window) causing:

  • dropping of the supported main elevational brickwork
  • dropping brickwork pier stone quoins
  • dropping window arches above the bay window
  • inward sloping and cracking of the brickwork above the bay window

As part of previous attempts to halt the movement of the masonry, the bressummer beam over the bay window had been replaced by an old-style RSJ.

Bay & Portico Balcony Issues

The owners also wanted to deal with some aesthetic problems with the bay and portico balcony balustrade’s decorative wrought iron panels and stone top rails. All the panels required refurbishment. The bay window’s stone top rail had been replaced with an unattractive concrete capping. The portico stone top rails were mainly missing. New stones, in keeping with the period features, were needed to complete the restoration.

The Structural Solution

AWT recommended realigning and reinforcing remediation work to the existing brickwork including:

  • brickwork realignment
  • bed joint reinforcement
  • brickwork arch repair
  • diamond drilled grouted anchors
  • lateral restraints
  • grout tie injection
  • stonework & brickwork repairs
  • addition of fabricated steel spines to the columns
  • addition of an internal restraint post to the first floor

This multi-faceted approach reinstates uniformity and provides restraint to the masonry.

AWT also carefully removed the balcony balustrade panels for refurbishment. The lugs were replaced with stainless steel before the panels were grit blasted, powder-coated black and refitted. The brickwork corner piers were rebuilt. Finally, AWT had replacement capping stones cast in a limestone material with stainless steel reinforcing and bedded them in position.

Fast, Cost-effective, Minimal Disruption, Long Term Structural Repairs

Tackling such serious structural issues using traditional building techniques would have required reconstruction and rebuilding of the front of the property. Rebuilding would have been expensive, slow and highly disruptive to the homeowners. Damage to the original bricks and ornate stonework would be inevitable.

In just 2 weeks, AWT’s long-term repairs were completed without major rebuilding work or visible fixings to mar the internal or external period features.

Action Wall Ties are specialist structural repair contractors with the skills and experience required to repair and restore period properties.  AWT works on large and small projects for property owners, structural engineers, architects, project managers and local authorities.

AWT are available in Kent, London, Essex, Surrey and Sussex. To arrange a survey or to discuss project details, please use our contact form, email us or call us on 01227 721 255.

Collapsing Grade II Bay Window Repairs

Grade II Listed Building Bay Window Saved From Collapse

AWT was contacted by very concerned homeowners of part of a Grade II listed c 1800 farmhouse with several structural engineers’ reports stating the bay window was unstable and that rebuilding was the only recourse, but that was contrary to Historic England’s preferred solution and their wishes.

The double bay window was supported with props to prevent collapse. In common with many properties that AWT repairs, this property showed signs of previous ineffective structural repair work.

AWT was able to realign and reinforce the structure without the need for pattress plates, tie bars or other visible reinforcement. AWT’s specialist structural repair techniques also allowed the owners to avoid slow, expensive and inconvenient deconstruction and rebuilding of the ground floor bay to install new lintels. AWT’s specialist repair techniques were classed as a repair by Historic England which greatly simplified the entire process.

Read our frequently asked questions about bay window structural repairs.

The Structural Problem

When AWT was called in to repair this Grade II listed property the bay window masonry had been supported for 2 years with props to prevent collapse.

The homeowners structural engineer report had warned that the structure “could be close to the tipping point” and recommended that the ground floor bay be rebuilt and the first floor repaired. Deconstructing the ground floor masonry and rebuilding it with additional lintels would have been slow and costly, not to mention disruptive to the residents. AWT’s specialist structural repair techniques allowed the owners to avoid slow, very expensive and inconvenient deconstruction and rebuilding of the ground floor bay to install new lintels.

The owners were delighted that AWT could offer a much better solution to the property’s bay window’s many structural defects.

The structural problems included:

  • Brick arches over the ground floor windows slipped by 20-25mm
  • Brick arch nearest the left-hand brick pier pushed out by approx. 20mm
  • Fractured brickwork & mortar joints opened up
  • Pronounced, 60mm bulge in left-hand brick pier
  • 25mm bulge in right-hand brick pier
  • Cracks in brick columns
  • 650mm long crack in 1st floor internal wall
  • External brickwork movable & wall ties completely fractured
  • Ongoing movement with cracks and bulges increasing month on month
  • Collapse of outer brickwork only a matter of time

The Structural Repair Solution

AWT’s specialist repair techniques were classed as a repair by Historic England which greatly simplified the entire process.

AWT, adopting their uniquely developed realigning equipment, was able to lift and realign the original structure’s fabric, therefore, conserving the original features and textures. Despite the advanced nature of the bay window defect, only the outer layer of the brick columns required deconstruction and rebuilding with new handmade shaped brickwork (the original bricks were too decayed to be used.)

As can be seen in the gallery below, the doors and windows remained in situ throughout the work, keeping the disruption to the homeowners to a minimum.

AWT works realigned and reinforced the bay window, reinstated stability and maintained the appearance without the need for pattress plates, tie bars or other visible reinforcement.

Hydraulic realigning equipment, designed by AWT,  was used to lift and realign the arches and brickwork before reinforcing the masonry. Using AWT’s specialist drilling equipment, stainless steel fixings are installed within the masonry. This strengthens the structure and redistributes the load from the upper-story masonry. The hidden fixings and remedial wall ties also restrain the brickwork from bulging.

The reinforcement work included:

  • Bed Joint Reinforcement – Beaming
  • Fenestration lintel- brickwork arch repair
  • Precision Diamond drilling
  • Lateral restraints
  • Grout tie injection
  • Location and isolation of corroded wall ties
  • Remedial, resin-bonded wall ties
  • Deconstruction & rebuilding of just the outer skin of the bay pillars
  • Brickwork repairs and repointing.

Action Wall Ties are specialist structural repair contractors with the skills and experience required to repair Grade I, Grade II and Grade II* listed heritage buildings.  AWT work along with property owners, structural engineers, architects, project managers and local authorities on large and small projects.

AWT are available in Kent, London, Essex, Surrey and Sussex. To arrange a survey or to discuss project details, please use our contact form, email us or call us on 01227 721 255.

Repairs to Ornate Window Columns

Structural Repairs for Ornate Victorian Window Columns

simple horizontal - Repairs to Ornate Window Columns
structural repairs SW4 - Repairs to Ornate Window Columns
l SW4 windows gaps - Repairs to Ornate Window Columns
l SW4 windows gaps - Repairs to Ornate Window Columns
l SW4 windows gaps - Repairs to Ornate Window Columns
l after SW4 column repaired - Repairs to Ornate Window Columns
l SW4 bay cracked 1 - Repairs to Ornate Window Columns
l after SW4 bay repairs - Repairs to Ornate Window Columns
l SW4 bay cracks - Repairs to Ornate Window Columns
l after SW4 bay repaired - Repairs to Ornate Window Columns
Structural Repairs for Ornate Period Windows
Before Window Structural Repairs
Before Window Structural Repairs
Before Window Structural Repairs
After Window Structural Repairs
Before Bay Window Structural Repairs
After Bay Window Structural Repairs
Before Bay Window Structural Repairs
After Bay Window Structural Repairs

simple horizontal - Repairs to Ornate Window Columns



The exterior of this 4 storey property in the London Borough of Lambeth, SW4, is packed with beautiful period features.  As well as stone columns with ornate capitals, it also has decorative brick pillars and arched windows.

Sadly, a combination of ageing and ineffective restraining of the stone and brickwork columns was allowing the columns to bow out and the brick arches to drop and spread. This was cracking the surrounding brickwork. If the window columns, pillars and arches were not restrained and reinforced it would result in the failure of the window supports and the collapse of the structure above.

The Structural Problem

This period home in South West London, like many properties with serious structural defects, showed signs of previous attempts at repair by standard building methods. Repointing in areas where the brickwork columns had bowed failed to prevent the columns bowing further. Without specialist structural repairs the columns and arches would fail and cause the structure above to collapse.

As shown in the gallery below, AWT designed a programme of repairs that target the root cause of the structural failings. Due to AWT’s specialist equipment and know how, demolishing and rebuilding the affected areas was not required.  AWT used precision drilling equipment to install fixings within the masonry, restoring structural integrity without damage to the period features.

Read our frequently asked questions about bay window structural repairs.

simple horizontal - Repairs to Ornate Window Columns
p bowing columns lambeth - Repairs to Ornate Window Columns
p SW4 window column repairs - Repairs to Ornate Window Columns
p column gaps lambeth - Repairs to Ornate Window Columns
p SW4 column repairs - Repairs to Ornate Window Columns
Before Window Column Realignment
Window Column Structural Repair
Gaps Around Windows

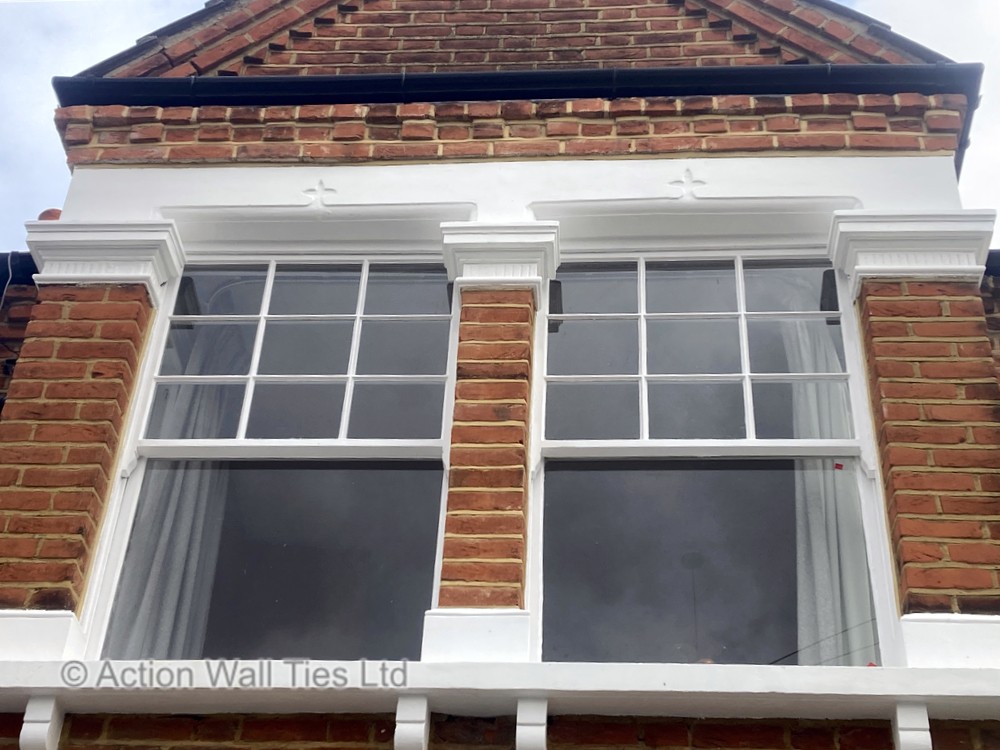

Realignment & Repair of Window Columns

simple horizontal - Repairs to Ornate Window Columns



The property had 3 areas that required structural repairs:

The 2 Storey Bay Window

  • Visible rotational bulging
  • Signs of distortion and distress with rotational movement
  • Dropping of brickwork arches
  • Leaning of the supporting columns
  • Cracks

Front 1st Floor Window

  • Significant outward movement to the first floor right hand stone column and capital
  • Unrestrained column had moved outwards allowing the attached brickwork to lean outward and drop
  • Resultant gaps between the timber window box frame and the column

Rear 2nd Floor Window

  • Significant outward bowing movement to the two brickwork columns
  • Unrestrained brick columns moved outwards leaving a bow shaped space between the timber window box frame and the column
  • Attached brickwork leaning outward

The Structural Repair Solution

AWT’s specialist repairs were designed to alleviate the masonry defects, add tensile strength and restore the integrity of the masonry without compromising the beauty of the period features.

Installation of custom fixings within the masonry redistributes the upper storey loads to those parts of the supporting structure below which are best able to carry them. This also restrains diagonal cracking and bulging of the brickwork.

  • Install temporary supports
  • Deploy AWT designed realigning cramping equipment
  • Use specialist hydraulic powered jacks to realign the columns and brickwork arches
  • Install steel corded bed joint reinforcement embedded within the masonry
  • Reconnect and reinforce the masonry by precision drilling and installation of Cintec sock anchors
  • Reconnect the bay window’s brickwork and masonry using grouted 8mm helical bars
  • Repair damaged stonework with Flexacrete
  • Replace cracked bricks and mortar ensuring suitable colour match

Action Wall Ties are specialist structural repair contractors with the skills required to reinforce and realign window support columns on modern, period and heritage properties. AWT work along with property owners, architects, project managers and local authorities on large and small projects.

AWT are available in Kent, London, Essex, Surrey and Sussex. To arrange a survey or to discuss project details, please use our contact form, email us or call us on 01227 721 255.

Remedial Wall Ties for Victorian Semi in Surrey

Bulging & Cracking Brickwork Across Front of Victorian Semi Detached Houses

These 2 Victorian semi detached houses in Egham, Surrey had a significant bulge in the brickwork above the first floor windows. There was also a failing brick arch lintel and cracking to the brickwork. Without swift action the masonry would collapse.

AWT were called in to repair the defects and allow the homeowners to avoid slow, expensive and disruptive rebuilding work. Equipment designed by AWT was used to realign the brickwork, stabilise and reinforce the masonry and then install new wall ties and lateral restraints.

Surrey bowing masonry repairs - Remedial Wall Ties for Victorian Semi in Surrey

The Structural Problem

The AWT survey team visited the property in Surrey, TW20 to identify the root cause of the visible bulging of the masonry at the front of the property. The AWT survey team quickly identified that this Victorian semi was built using cavity wall construction and that failing cavity wall ties were likely a root cause of the problem.

A limited inspection of the wall ties was undertaken by drilling 12mm holes in the outer leaf of brickwork to view within the cavity via an endoscope. This confirmed the diagnosis of failing wall ties, as can be seen from the photos taken with the endoscope, as the corrosion of the metal was clearly visible. The mild steel ties were all in a similarly heavily corroded condition and showing signs of de-laminating.

Failing Victorian wall ties surrey - Remedial Wall Ties for Victorian Semi in Surrey

Horizontal cracking, lifting and opening up of joints was noted at irregular intervals on the front elevation. Metal ties were located behind the cracks, with an electronic wall tie locator.

Corrosion of the embedded mild steel wall ties was causing them to expand to many times their original size. This was damaging the outer leaf of brickwork, splitting the bed joints and causing either lifting or bowing of the walls and damage to internal finishes. This left the wall vulnerable to vertical and wind loads, especially such a large gable wall.

Without structural repairs the wall would continue to bow further and eventually collapse. Traditional building methods would have required the partial deconstruction and rebuilding of the front of the properties.

The Structural Repair Solution

Completed wall tie repairs Surrey - Remedial Wall Ties for Victorian Semi in Surrey

Unlike some cavity wall tie repair contractors, AWT always works to the standards laid out in the Building Research Establishment Specification Digest. This means that the separation between new wall ties, the layout pattern of the new wall ties and the material used to manufacture the new wall ties all meet the highest standards to ensure a safe, long term structural repair.

To avoid failure of the brickwork and brickwork arch AWT realigned the bulged brickwork, installed new stainless steel wall ties, isolated the old ties to prevent them causing further damage and formed a composite beam within the external brickwork. The formation of deep masonry beams within the existing masonry supports the masonry and maintains the integrity of the brickwork.

AWT use their own custom designed hydraulic realignment equipment and diamond bladed precision drilling rigs. This allows the new fixings to be installed with minimal disturbance to the masonry. A variety of specialist fixings were introduced into the brickwork to restore the strength and stability of the wall.

As can be seen in the photo above, when the work is complete there are no visible fixing either inside or outside the property. The AWT team also take the time to colour match any replacement bricks as well as matching the colour, texture and pointing style of the mortar where work has taken place.

AWT provide cost effective structural repairs for a wide range of structural faults including failing cavity wall ties and bulging brickwork. We operate not only in Surrey but across the whole of London and the South East of England.

To book a time for one of our surveyors to visit your property or to discuss your requirements, call us today on 01227 721255, email us at enquiries@actionwallties.co.uk or use our contact form to get in touch.

Hazardous Masonry on Grade 2 Listed Building

Listed Building with Bulging & Cracking Masonry

This Grade II listed building in Thanet, Kent, was built in the 1840’s. The owners of this period property were facing the prospect of demolition and rebuilding of the facade of the property due to serious structural defects. Previous repairs using standard building techniques had failed to solve the structural problems. The property is currently in use as a nursery school. The business would have been forced to close for several months during traditional building works. AWT were able to repair the severe structural problems in a couple of weeks and preserve the period features without disrupting the running of the business.

Thanet grade 2 listed - Hazardous Masonry on Grade 2 Listed Building

The Structural Problem

The structural issues with this Victorian, Grade 2 listed property in Ramsgate, Kent were becoming hazardous due to the risk of falling masonry. Traditional building methods would have required several months of expensive and messy deconstruction and rebuilding work. The business would have been forced to close during the building works and the subsequent re-plastering and redecoration.

The front of the building had clearly visible bulging and cracking to the head of all the first floor windows. There were also cracks in the brickwork and stucco works each side and to the underside soffit of the window opening heads. There were clear signs of previous attempts at repairs that had failed to get to the root cause of the problems.

grade 2 listed structural defect - Hazardous Masonry on Grade 2 Listed Building
Buckling Brickwork

As shown in the photo below, the mild steel embedded within the masonry had corroded and the rust caused it to expand to several times the thickness of the original metal. The heavily corroded wrought iron arch bars were lifting and cracking the brickwork and the decorative stucco around the windows. The stucco stringer course frieze and cornice of the parapet wall was also cracking and distorting. Previous attempts at repairs had provided a temporary, cosmetic repair but had failed to solve the underlying structural defects.

The continued expansive corrosion of the wrought iron arch bars would, without remedial works, lead to the failure of the masonry and the risk of detached masonry falling from the building. Urgent structural repairs were required.

The Structural Repair Solution

Structural repairs to listed buildings need to be handled carefully to preserve the period features of the building. AWT have many years of experience working on listed properties. AWT can help the owners of listed buildings to navigate through the process of obtaining permission for repair works.

The specialist tools and techniques that AWT employ allow structural repairs to be made without the need for visible fixings. Using custom designed drilling and cutting tools, AWT can remove corroded metal fixings and embed new stainless steel fixings within the masonry.

Scaffolding listed building repairs - Hazardous Masonry on Grade 2 Listed Building

In order to allow the business to remain open during the structural repair works, AWT arranged for the scaffolding to be erected at the weekend while the nursery was closed. The scaffolding was then double boarded and netted for safety. The AWT crew accessed the scaffolding from the side of the building allowing parents, children and staff to access the building as usual through the main entrance.



The AWT team used their specialist techniques to form composite beams within the existing brickwork and then remove and replace the corroded wrought iron arch bars. The team then reconnected and reinforced the brickwork above the windows and the parapet wall. They also repaired the cracked decorative stucco.

This project required a combination of:

  • Bed joint reinforcement beaming
  • Grout tie injection
  • Resin bonded ties
  • Cintec sock anchors
  • Removal of corroded mild steel arch bars
  • Replacement arch bars
  • Brickwork repairs

The team at AWT strive to make all works as sympathetic as possible with the existing masonry. Not only do they try to match replacement bricks and pointing for colour and style they even match the mortar mixture texture.

The high quality fixings used by AWT combined with their thorough knowledge of structural defects ensures a long term solution to structural issues.

Action Wall Ties are structural repair contractors with the specialist skills required for listed buildings. AWT work along with property owners, architects, project managers and local authorities to preserve historic buildings.

AWT are available for large and small projects in Kent, London, Essex, Surrey and Sussex. To arrange a survey or to discuss project details, please use our contact form, email us or call us on 01227 721 255.

Distorted Columns & Lintels

Failing Bay Window Columns & Lintels

The charming bay window of this period property in Kensal Green, North West London was at risk of collapse due to failing lintels and stonework columns following the addition of a loft conversion.

The Structural Problem

The structural problems of this period property in London, NW10 were clearly visible. There was significant outward rotation of the masonry columns and lintels around the bay window. The structural issues had become more noticeable following the addition of a loft conversion and the installation of new double glazed windows.

The survey by AWT revealed that if the columns and lintels were not restrained and reinforced it would result in the failure of the bay window masonry. Such a serious defect required specialist structural repairs to avoid costly and disruptive rebuilding of the bay window.

The seriousness of the problem can be seem by how far the bay window masonry was leaning away from the main structure. The photo below shows that a gap of several centimeters had opened up between the new double glazing and the original stonework. This outward movement had also caused cracking in the surrounding brickwork.

The Structural Repair Solution

Avoid costly rebuilding work by calling in the experts. At best, traditional building methods would require the partial demolition and rebuilding of the bay window brickwork. This would be costly, disruptive and time consuming. At worst, homeowners may find they have paid for superficial, cosmetic repairs that do not solve the underlying structural issues.

The front of the house was stabilised by realigning, restraining and reinforcing the masonry using AWT’s specialist tools and techniques. This included:

  • Bed Joint Reinforcement
  • Lateral Restraints
  • Grout Tie Injection
  • Brickwork Repairs
  • Repairs to Ornate Columns
  • Repointing with Colour Matched Mortar

All of this was achieved without visible fixings or rebuilding work. The property was left simply requiring retouching of the paint in the disturbed areas to restore it to its original beauty.

AWT provide cost effective structural repairs for a wide range of structural issues including failing bay window columns and lintels. We operate not only in NW London but across the whole of London and the South East of England.

To book a time for one of our surveyors to visit your property or to discuss your requirements, call us today on 01227 721255, email us at enquiries@actionwallties.co.uk or use our contact form to get in touch.

Stone Arch & Bay Window Reinforcement

Reinforcement and Repair of Ornate Stone Arch & Bay

This end of terrace home in Walthamstow, East London had 2 structural issues. The stone entrance arch had significant cracking to the brickwork above and cracking in the internal walls. The ornate bay window was dropping and leaning outwards plus the stonework was cracking and spalling.

Walthamstow bay repairs - Stone Arch & Bay Window Reinforcement

The Structural Problem

The period decorative features on this home in London, E17, were showing their age due to structural issues causing cracked brickwork and stonework. The structural movement had exacerbated the deterioration of the paintwork leaving the beautiful, ornate stonework looking shabby.

There was significant cracking above the stone entrance arch in both the external brickwork and the internal walls.

E17 stone arch repair - Stone Arch & Bay Window Reinforcement

The bay window had visibly shifted and caused cracks in the external brickwork as well as in the interior walls. The supporting columns and cills had become distorted.

These are common problems in such Victorian / Edwardian properties and are usually the result of ageing and inadequate restraining in the original building methods.

The AWT team also had to be prepared in case the masonry components weren’t solid masonry but simply a thin facade covering a timber frame.



The Structural Repair Solution

  • Installation of temporary supports & AWT designed cramping equipment
  • Realignment of masonry with hydraulic jacks
  • Precision diamond drilling & installation of stainless steel corded joint reinforcement.
  • Reconnecting the bay window brickwork to the main elevation by embedding grouted 8mm helical bars.
  • Installation of lateral restaints.
  • Repair damaged stonework with Flexcrete Monomix concrete repair mortar system.
  • Crack stitching work to cracked brickwork.
  • Cutting back damaged brick faces or resurfacing damaged bricks where possible using AWT methods.
  • Cutting out badly cracked bricks and replacing with colour matched yellow stock bricks.
  • Re-point disturbed areas with colour matched sand lime and cement mixture.

AWT provided an efficient, cost effective, permanent repair without the need for visible fixings. AWT have the tools and skills to remediate the root cause of these types of period property structural defects. AWT’s specialist fixings meant no rebuilding work was required and so disruption to the homeowner was kept to a minimum. The property was left ready for painting to restore it to its former glory.

E17 bay arch repairs - Stone Arch & Bay Window Reinforcement

Read our frequently asked questions about bay window structural repairs.

For a fast, effective solutions to stone arch and bay window structural problems contact AWT today. We provide professional solutions to a wide variety of structural issues for home owners across London, Kent, Surrey and Sussex. Contact us on 01227 721 255, or email us.

Bay Window with Severe Deterioration

Bay Window with Severe Deterioration

The brickwork of this mid-terraced Victorian/Edwardian era home in the Stratford, E11 area of London had reached a critical condition. The severe nature of the building’s defects required a combination of specialist structural repair techniques.

damaged bay - Bay Window with Severe Deterioration

The Structural Problem

Without urgent structural repairs, the bay window masonry of this period property would collapse. Symptoms of the severe masonry defects were:

  • Front bay windows visibly bowing outward
  • Severe deterioration of bricks in the bay window pillars
  • Crumbling, spalling bricks
  • Distorted cracked stonework
  • Cracking brickwork
  • Failing, spalled pointing
  • Cracked front entrance concrete step
  • Significant cracking and dropping of brick arch lintels

The problems had been caused by ageing, seasonal moisture, thermal expansion and contraction and inadequate restraining of the masonry due to the building methods of the era.

The Structural Repair Solution

Traditional building methods would have required major deconstruction and rebuilding works. AWTs advanced methods allowed the property to be repaired with only one brick pillar requiring rebuilding. This saved the property owner from long, disruptive building works. The property was able to be occupied throughout the repair works. AWT provided a long-lasting, cost-effective structural repair.

reconstructed bay - Bay Window with Severe Deterioration

Temporary supports were installed to the underside of the ground floor bay window lintels and capital to enable the removal of the right hand column up to the stone capital and the cracked distorted brick corner below the cill.

Stainless steel corded joint reinforcements were installed to form a deep masonry beam. This redistributes the upper-storey loads and restrains diagonal cracking and bulging tendencies.

The bay window brickwork was reconnected to the main brickwork by the installation of remedial grouted helical bars. An angled steel spine reinforcing with welded ties to restrain the rebuilt brickwork column was fabricated and installed. The brickwork column was realigned and rebuilt with all new bricks.

New stainless steel remedial ties were screwed and resin bonded in place to connect the timber frame to the masonry. Steel pins were installed to stitch the brick arches above the rear windows to restore structural integrity.

The stone front step and other stonework had damaged areas cut away and repaired with Flexcrete concrete repair system. Damaged bricks were refaced where possible, badly damaged bricks were replaced and failing pointing was raked out and replaced.

The replacement bricks, pointing style and mortar mixture were matched for both texture and colour. The property was left ready for the stonework to be repainted.

Read our frequently asked questions about bay window structural repairs.

Action Wall Ties (AWT) are specialists in masonry reinforcement and repair, including urgent masonry stabilisation and repair. We provide professional solutions to a wide variety of structural problems for homeowners in London, Kent, Surrey and Sussex. Contact us on 01227 721 255, or email us.

1950s style two-storey semi

1950s style two-storey semi

Wall tie treatment and weather struck re-pointing to 1950s style two-storey semi-detached house of the type typical of Kent and London.

case study 56e19a3932fe02.00956868 - 1950s style two-storey semi

The subject property comprised a 1950s style two-storey semi-detached house of cavity wall brick construction.

Structural Problems with these wall ties

The existing wall ties viewed were found to be mild steel vertical twist ties, commonly known as fishtail ties. The wall ties were found to be heavily corroded, fractured and delaminated.

case 12 a - 1950s style two-storey semi

The corrosion of the embedded mild steel wall ties had resulted in the forming of ferrous oxide, which had expanded to many times its original thickness, lifting and cracking the brickwork.

case 12 b - 1950s style two-storey semi

Solution for a wall tie repair and replacement

AWT completed a remedial programme providing a viable repair through the introduction of a pattern of remedial wall ties and isolating the existing ties, together with general brickwork repairs and weather struck re-pointing.

case 12 c 2 - 1950s style two-storey semi

Action Wall Ties (AWT) are specialists in masonry reinforcement and repair, providing professional solutions to a wide variety of structural problems in Kent and London. Contact us on 01227 721 255, or email us.



logo logo logo logo logo logo
